Ultimately, the optimal application of brake force goes back to the braking command. In other words, everything begins with the controls in the driver’s cab – the motion controller kit levers are what the driver uses to accelerate and brake the vehicle. On the other side of the windscreen , the windscreen wiper and wash systems ensure that the driver has a clear view at all times.
Controls tailored to the operator’s specific requirements
Human-machine interfaces in the shape of driver brake valves, brake controller 'MotionLead Brake' and 'MotionLead Basic', traction controller 'MotionLead Traction' and master controller 'MotionLead Master' are used across many different traction modes and installed in locomotives, EMUs and DMUs, high-speed trains and metros all over the world. A modular kit-based design allows Knorr-Bremse to tailor the controls to the operator’s specific requirements while at the same time offering reliable, thoroughly proven technology.
Contact
Sales Rail Vehicle Systems Knorr-Bremse Systeme für Schienenfahrzeuge GmbH
80809 München
Deutschland - Germany
sales.sfs@knorr-bremse.com
Windscreen wiper and wash systems for all rail vehicles
Windscreen wiper and wash systems don’t always get the attention they deserve. But when a system fails, it can often keep the entire train out of service. Knorr-Bremse’s portfolio features systems for all types of rail vehicle. These systems can be configured to include equipment such as rain sensors and guarantee compatibility with the complex front-end geometries of modern rail vehicles.
Info
Download Product Brochures
MotionLead family

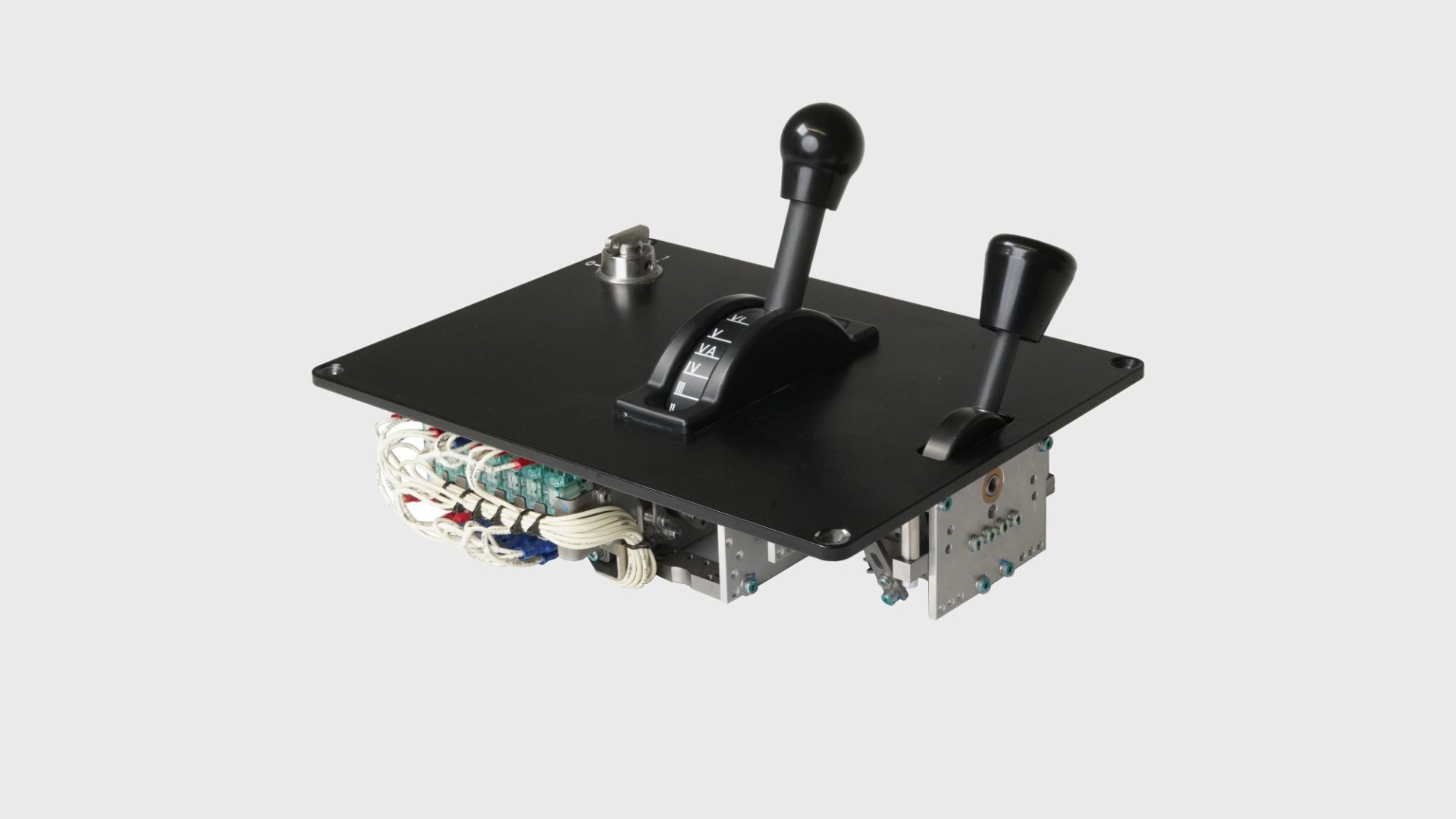

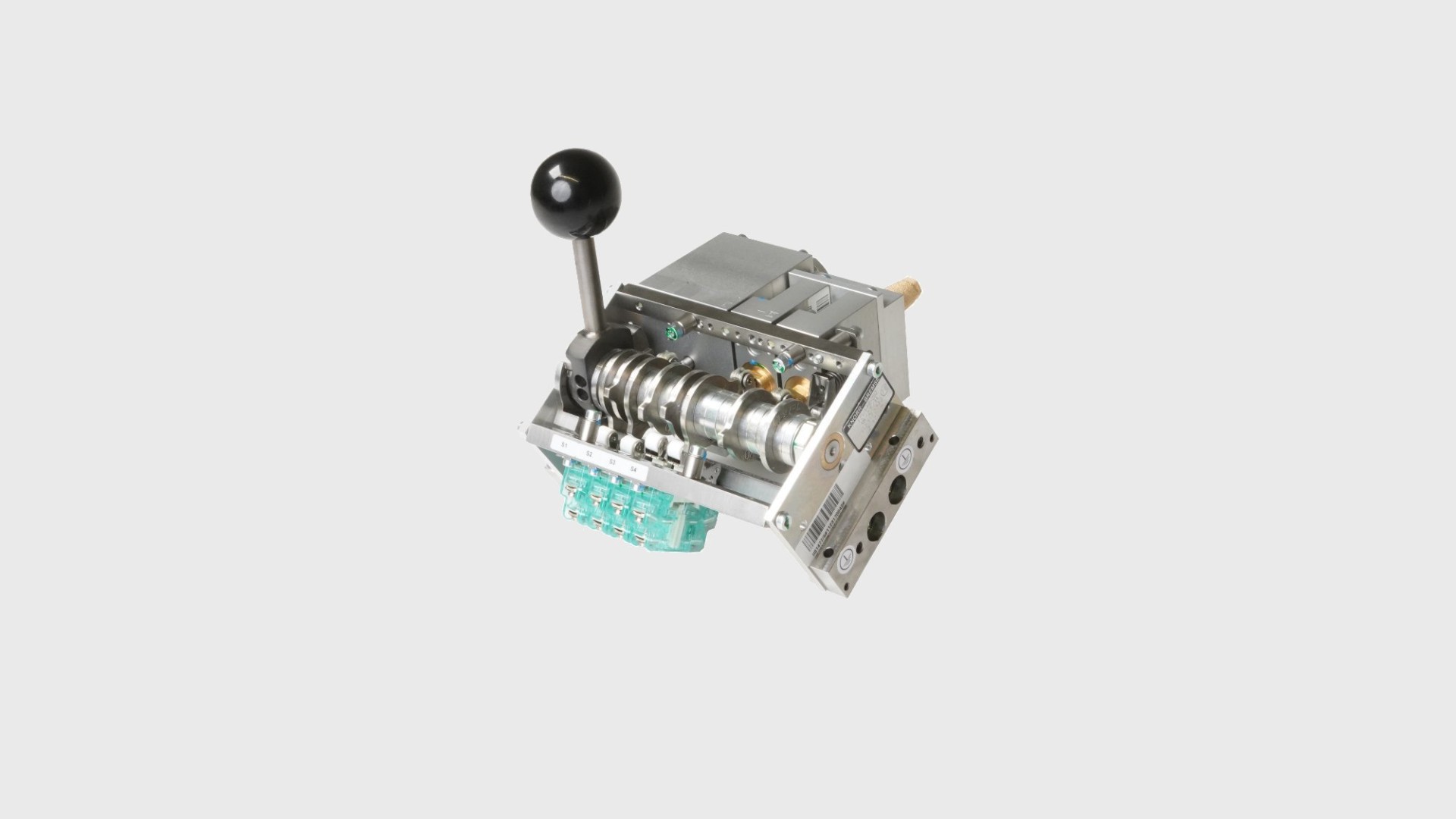

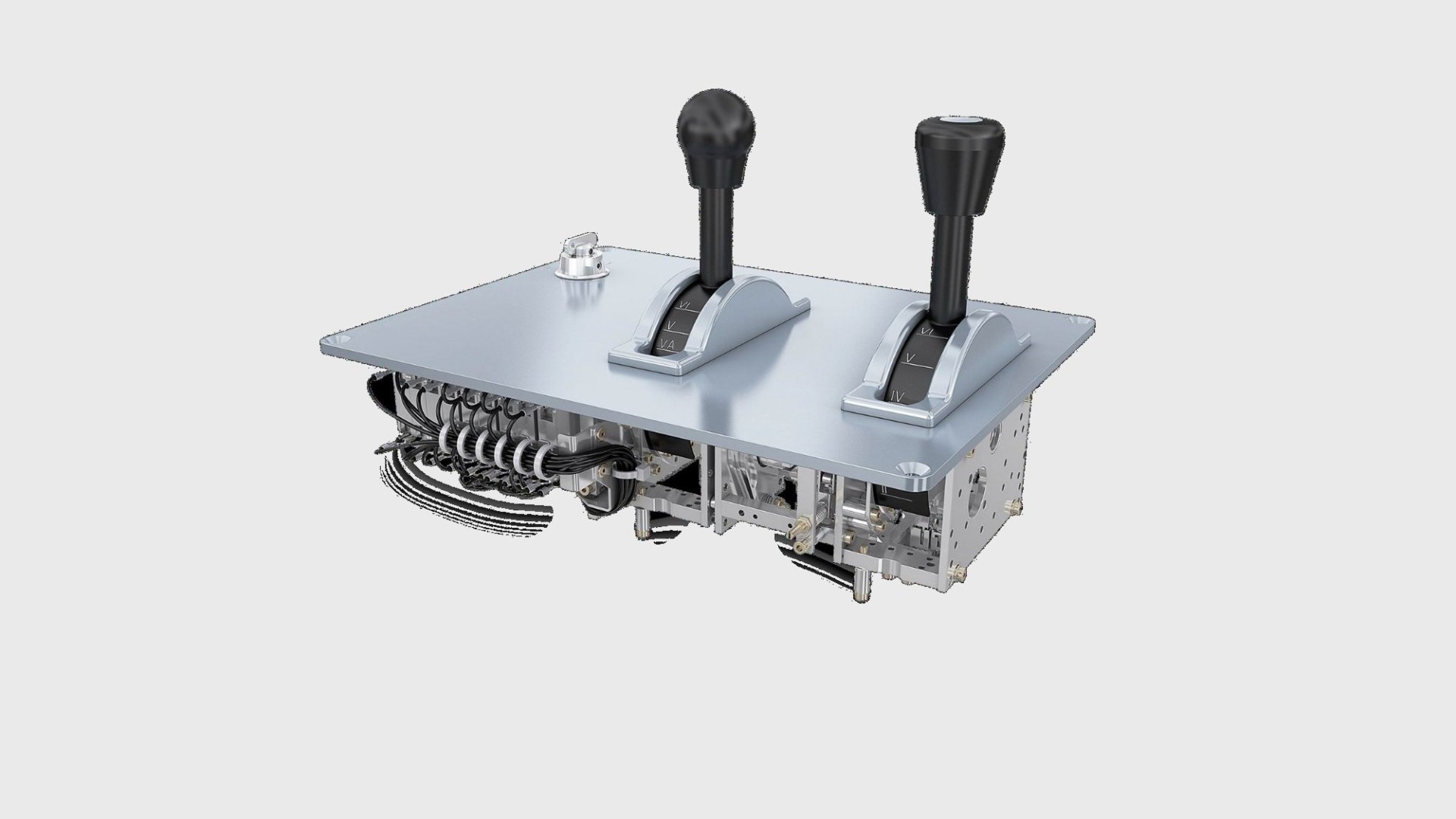

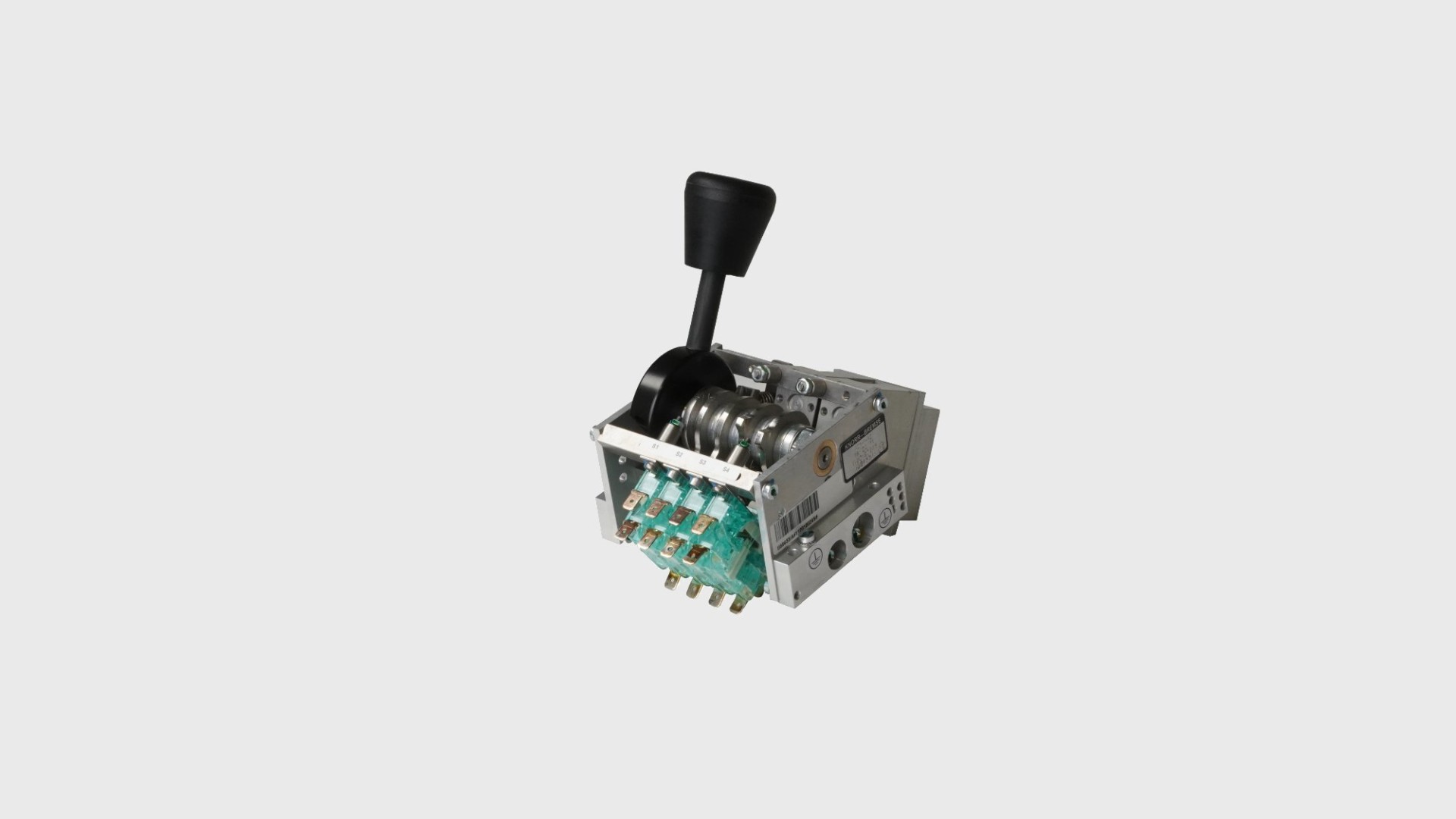

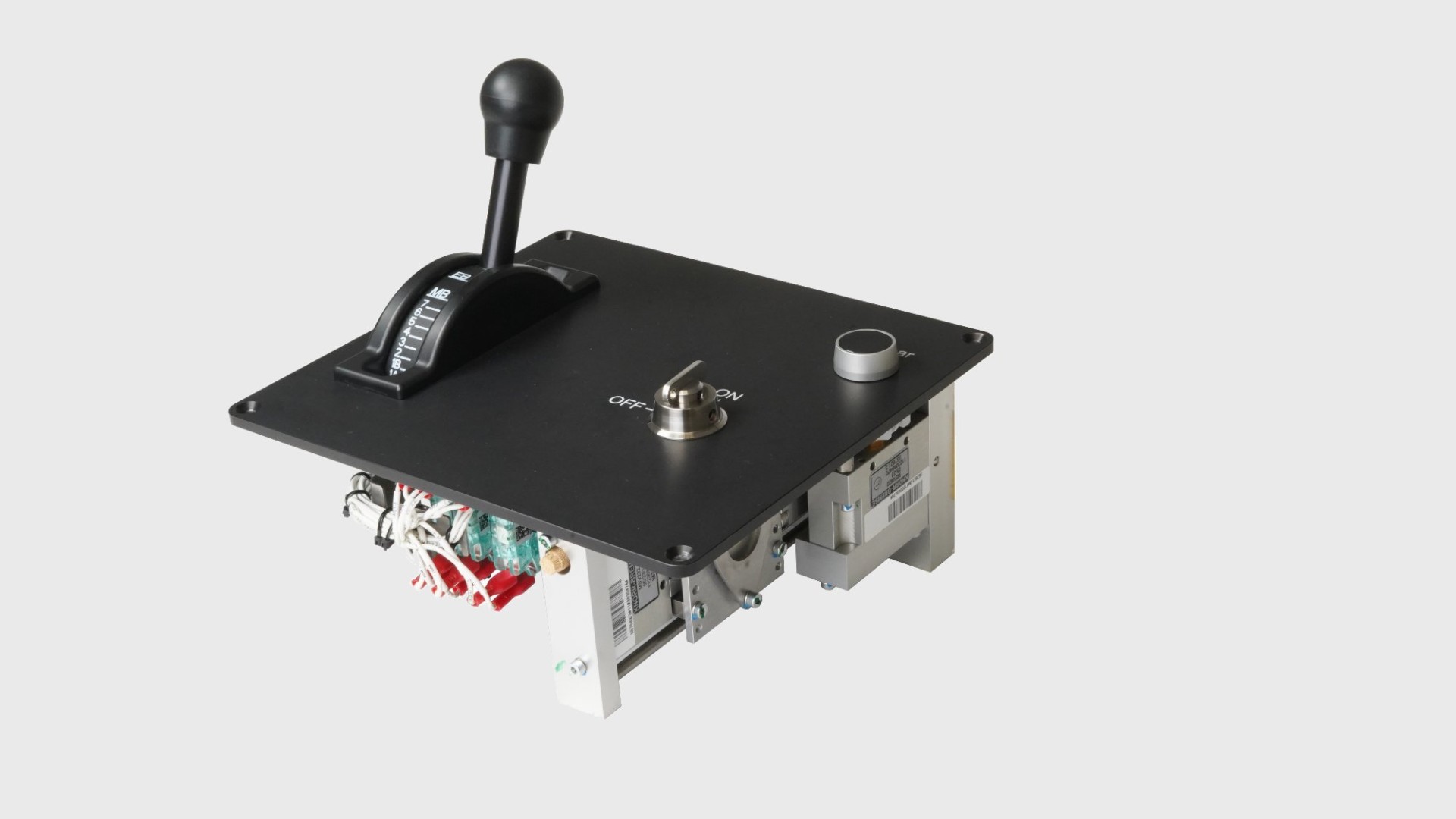

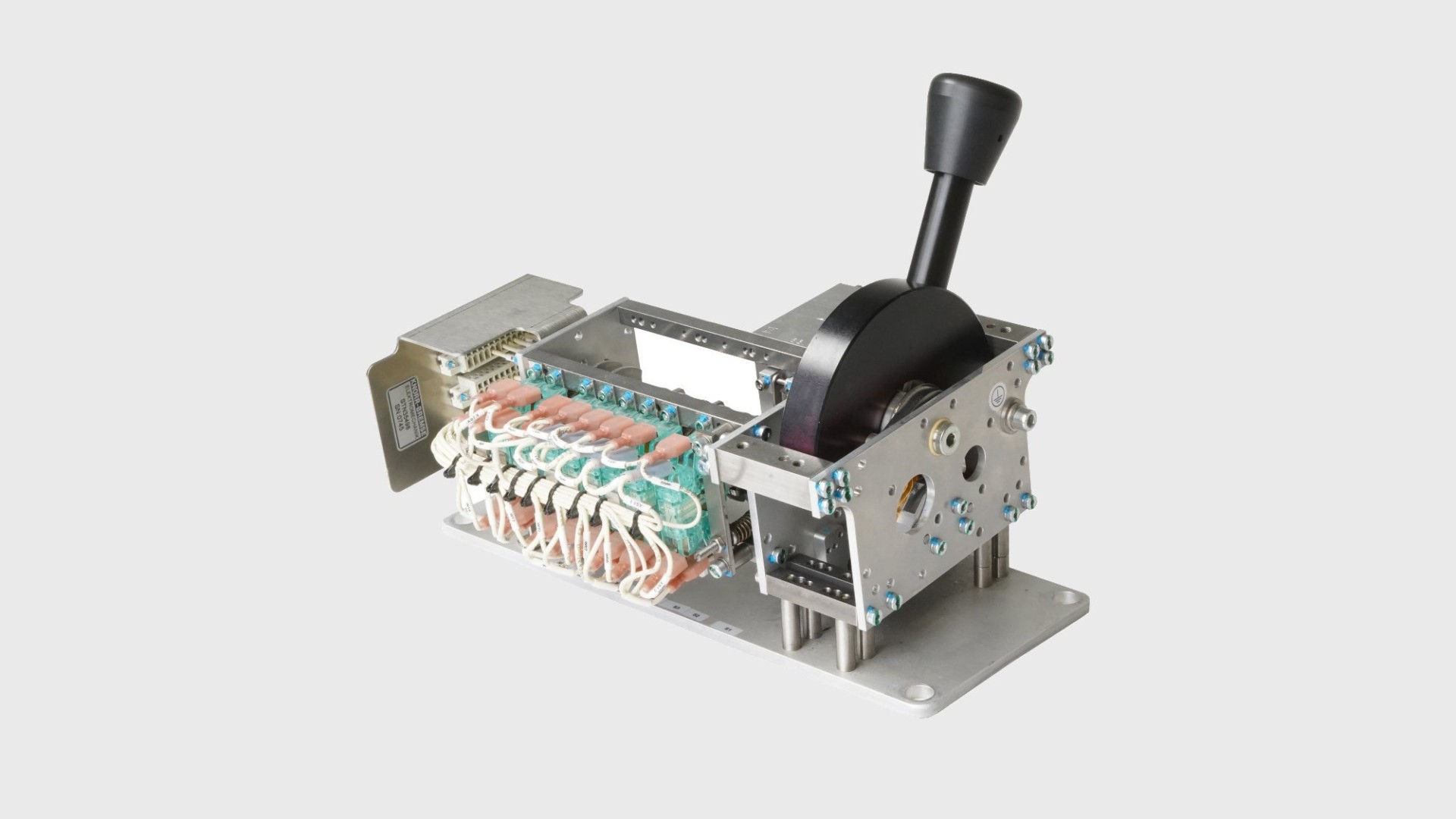

Devices of the MotionLead can be designed as driver's brake valves, traction controllers and master controllers. They are used in a range of different train operations and installed in locomotives, EMUs/DMUs, high-speed trains and metros all over the world.
MotionLead is tailored to suit the operator's specific needs, providing reliable, extensively proven technology and tested solutions. Its modular kit design enables Knorr-Bremse to offer project-specific solutions.
- Configurable man-machine interface as perfect connection to the market leader's brake systems
- Functional, modular units for flexible adaption
- Optimal space utilization
- According to common standards, e.g. UIC 612
- Short development and manufacturing times
- Easy and cheap overhaul/repair
- High-speed trains
- Light rail vehicles
- Locomotives
- Metros
- Regional & commuter trains
- Simulators

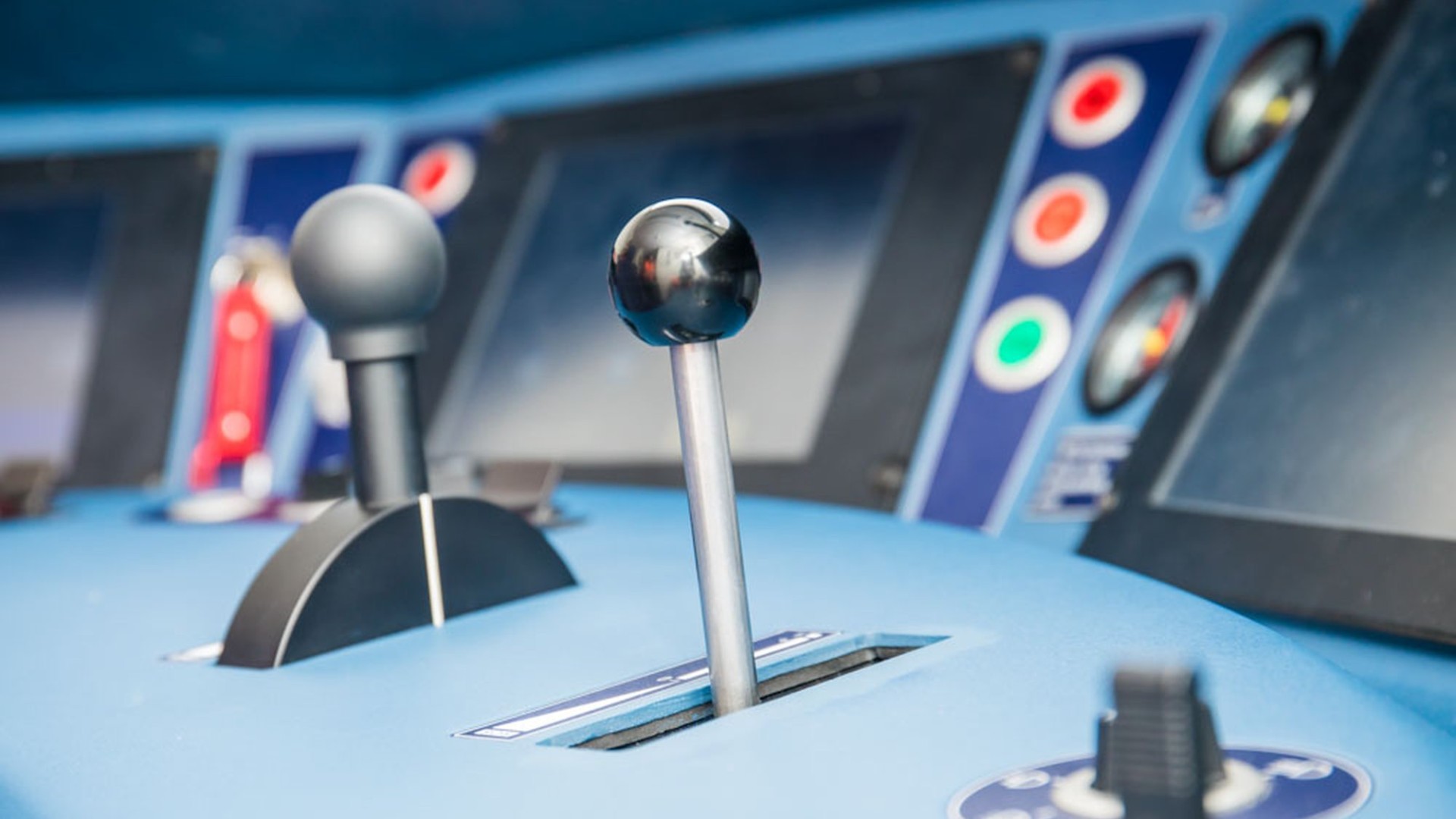

- A range of different driver's handle forms such as ball knob, press button or twist handle are available.
- Pneumatic functions available in 2/2 or 3/2 way versions or with pressure regulator.
- Standard angle sensor output signal is 4 … 20 mA or PWM encoder. Further signals are available on request.
- Top or bottom mounting on driver's console possible.
- All functions are available at ambient temperatures of −40 °C to +70 °C.
- Additional switches, pneumatic and electric cut-off functions, colors, inscriptions, mounting points, e/p-connections, locking function and directional lever can be included on demand.
Traction Control
Devices of MotionLead can be used for position- or time-dependent brake and/or traction controller.
Types of interfaces for train operation
Interface type Brake Traction Time Dependent Driver's Brake Valve ✓
– Position Dependent Driver's Brake Valve ✓ – Position Dependent Master Controller (optional Full Pneumatic Shadowing) ✓ ✓ CruiseController ✓ ✓
High quality standards

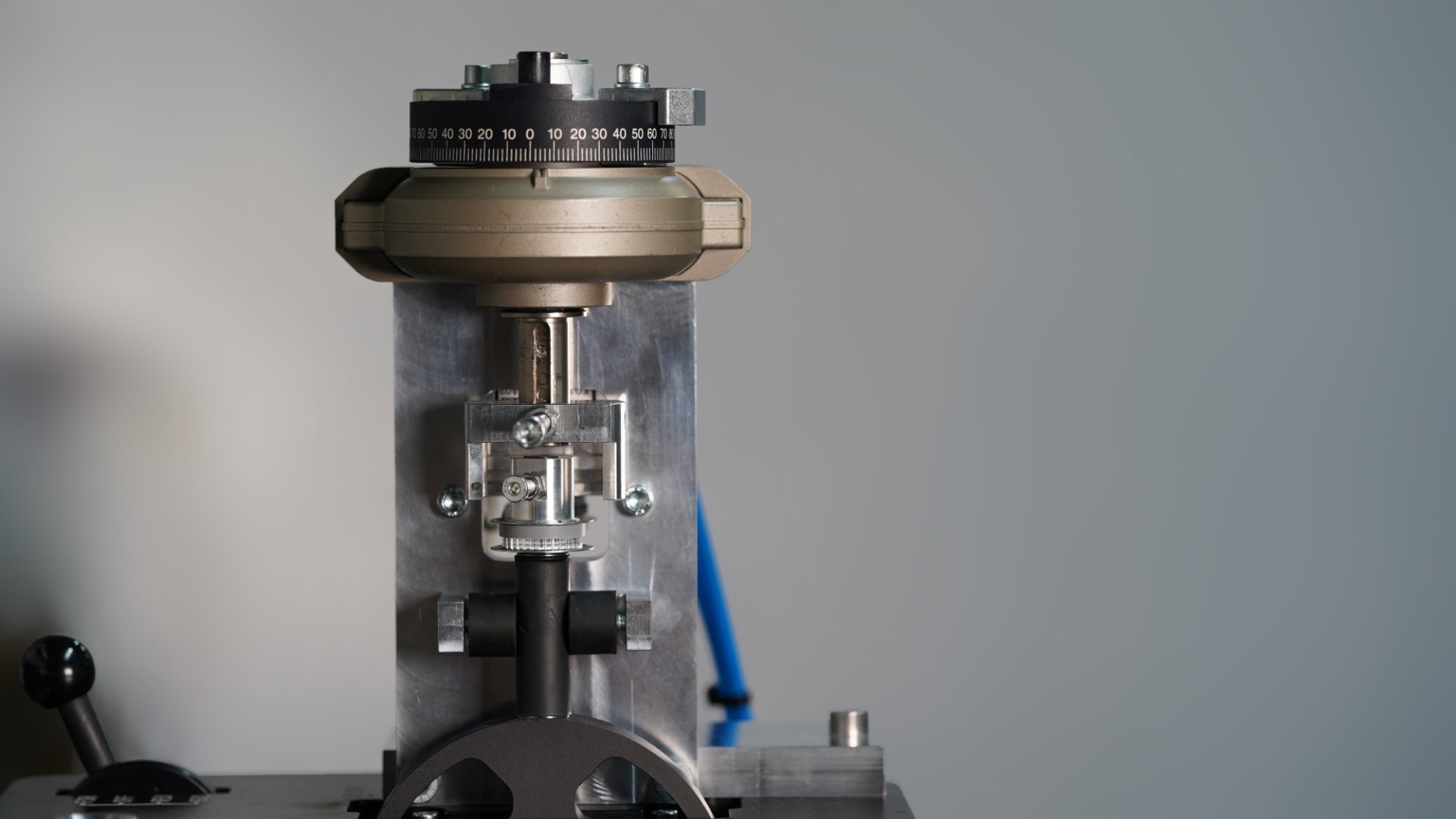

Devices of MotionLead meet the shock and vibration specifications according to EN 61373 class 1B and GOST 17516.1-90, group M25. In addition to endurance testing with 3 million cycles, tests have also been conducted for corrosion, dust and temperature resistance. This leads to best reliability and safety at the highest level!
